Low Thermal Resistant Cables, -196°C/+400°C

Download datasheet
Question about our product?
  • Applications
  • Outstanding features
  • Single Wires
  • Multi Core Cables
  • Shielded Multi Core Cables
  • Armored Multi Core Cables
  • Shielded Armored Multi Core Cables

• These type of cables are ideal for the most demanding applications in steel and aluminum plants, coke mills, glass factories, oil refineries and offshore rigs, and in various military and space installations and equipment.

• different types of Overhead cranes in steel plants: power cables for brakes and motors
• Coke oven charging car, Ladle car, pusher and related vehicles for coke batteries: power, control and coaxial cables
• Tundish, Ladle, rolling system, offshore oil rigs: power and control cables
• Rotory nozzles: power feed cables
• Magnetic flux sensor: control cables
• Arc, blast and plasma furnace: compensating cables
• Ladle transfer ladle preheater: power cables
• Glassware machinery: power and control cables
• Oil refinery shut-off valve control cables
• Hoods and burners
• Compensation cables for insertion pyrometers
• Power lines for electric arc oven sensors

• Under IEC 331 standard
• Instantaneous temperature tolerance of 1565 °C
• Resistant to melt spray
• Anti-burning coatings with non-toxic and harmful materials for humans and the environment
• High flexible stability of cable
• Tolerate to high temperature and harsh environmental and working conditions
• With 5 times greater Lifetime rather than the same traditional cable, so it is very costly
• The use of SAFE material which does not propagate more flames and does not spontaneously take fire with molten materials and heat
• ISULATOR structure: Special layers made by mixture of Mica, Polymeric and Fiberglass, which can withstand against fire and do not effluent more flames
• CONDUCTOR structure: Nickel-plated Cooper which provides high resistance to oxidation at high temperature, along with maintaining flexibility

TYPE LR: Thermal protection

  • Conductor : nickel plated copper
  • Insulation :according to ASCOTHERM® type LR
  • AS means made by ASCO

Operating voltage : 600 V
RMS Test voltage : 2200 V
RMS Standard colour : red

ASCO No.STRANDINGAWGNUMBER OF STRANDSDIAMETER OF STRANDSCONDUCTORINSULATED WIRE
Ø
mm		AREA
mm2		LINEIC MAX. RESISTANCE
Ω/100 m		OUTER
Ø, mm		APPROX. WEIGHT
g / m
AS-LR 26077 x 0.162670.160.480.1413.621.615.7
AS-LR 24077 x 0.2032470.2030.610.2268.461.746.8
AS-LR 22077 x 0.2542270.2540.760.3545.431.898.3
AS-LR 0.5016 x 0.20160.20.90.53.82.0310
AS-LR 201919 x 0.20320190.2031.010.6163.1162.1411.4
AS-LR 0.7524 x 0.202424 x 0.201.10.752.52.2312.7
AS-LR 1.0032 x 0.203232 x 0.201.2511.92.3815.4
AS-LR 181919 x 0.254181919 x 0.2541.270.9621.962.415.2
AS-LR 1619 M*19 x 0.287161919 x 0.2871.421.2291.532.5518.1
AS-LR 1619 N*19 x 0.30161919 x 0.301.51.341.42.6318.3
AS-LR 1.5030 x 0.253030 x 0.251.51.51.32.6320.3
AS-LR 141919 x 0.36141919 x 0.361.81.9380.962.9325.8
AS-LR 2.5050 x 0.255050 x 0.2522.50.783.1330.4
AS-LR 121919 x 0.455121919 x 0.4552.273.10.63.437.8
AS-LR 103737 x 0.405103737 x 0.4052.84.740.413.9354.9
AS-LR 4.00133 x 0.20133133 x 0.2034.310.454.1349.6
AS-LR 6.00133 x 0.25133133 x 0.253.86.70.284.9379.4

(*)  M : according to MIL specification - N : according to NF

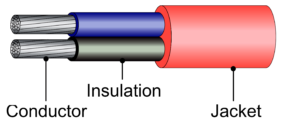

TYPE LR, Multicore cables: Thermal protection

  • Conductor : nickel plated copper
  • Insulation :according to ASCOTHERM® type LR
  • Jacket : ASCOTHERM®
  • AS means made by ASCO

Operating voltage : 600 V
RMS Test voltage : 2200 V
Colour :single wires colour coded, outer jacket : red

MULTICORE CABLESSIZE CROSSNUMBER OF WIRES
REFERENCESECTION/AWGmin.max.
AS-LR 2607 A xAWG 26225
AS-LR 2407 A xAWG 24224
AS-LR 2207 A xAWG 22221
AS-LR 0.50 A x0.50 mm2212
AS-LR 2019 A xAWG 20212
AS-LR 0.75 A x0.75 mm2212
AS-LR 1.00 A x1.00 mm2212
AS-LR 1819 A xAWG 18212
AS-LR 1619 M AAWG 16212
AS-LR 1619 N AAWG 16212
AS-LR 1.50 A x1.50 mm2212
AS-LR 1419 A xAWG 1429
AS-LR 2.50 A xAWG 1228
AS-LR 1219 A x2.50 mm227
AS-LR 1037 A xAWG 1027
AS-LR 4.00 A x4.00 mm227
AS-LR 6.00 A x6.00 mm224

x: number of primary wires

(*)  M : according to MIL specification - N : according to NF

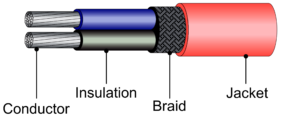

TYPE LR, Shielded signal cables: Thermal and electromagnetic protection

  • Conductor : nickel plated copper
  • Insulation :according to ASCOTHERM® type LR
  • Braid: nickel plated copper
  • Jacket : ASCOTHERM®
  • AS means made by ASCO

Operating voltage : 600 V
RMS Test voltage : 2200 V
Colour :single wires colour coded, outer jacket : red

SHIELDED SIGNAL CABLESSIZE CROSSNUMBER OF WIRES
REFERENCESECTION/AWGmin.max.
AS-LR 2607 ST A xAWG 26225
AS-LR 2407 ST A xAWG 24224
AS-LR 2207 ST A xAWG 22221
AS-LR 0.50 ST A x0.50 mm2212
AS-LR 2019 ST A xAWG 20212
AS-LR 0.75 ST A x0.75 mm2212
AS-LR 1.00 ST A x1.00 mm2212
AS-LR 1819 ST A xAWG 18212
AS-LR 1619 M ST A x*AWG 16212
AS-LR 1619 N ST A x*AWG 16212
AS-LR 1.50 ST A x1.50 mm2212
AS-LR 1419 ST A xAWG 1429
AS-LR 2.50 ST A xAWG 1228
AS-LR 1219 ST A x2.50 mm227
AS-LR 1037 ST A xAWG 1027
AS-LR 4.00 ST A x4.00 mm227
AS-LR 6.00 ST A x6.00 mm224

x: number of primary wires
(*)  M : according to MIL specification - N : according to NF

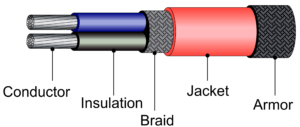

TYPE LR, Armored multicore cables: Thermal and mechanical protection

  • Conductor : nickel plated copper
  • Insulation :according to ASCOTHERM® type LR
  • Jacket : ASCOTHERM®
  • Armor: annealed stainless steel
  • AS means made by ASCO

Operating voltage : 600 V
RMS Test voltage : 2200 V
Colour :single wires colour coded, outer jacket : red

ARMORED MULTICORE CABLESSIZE CROSSNUMBER OF WIRES
REFERENCESECTION/AWGmin.max.
AS-LR 2607 AS xAWG 26219
AS-LR 2407 AS xAWG 24219
AS-LR 2207 AS xAWG 22219
AS-LR 0.50 AS x0.50 mm2212
AS-LR 2019 AS xAWG 20212
AS-LR 0.75 AS x0.75 mm2212
AS-LR 1.00 AS x1.00 mm2212
AS-LR 1819 AS xAWG 18212
AS-LR 1619 M AS x*AWG 16212
AS-LR 1619 N AS x*AWG 16212
AS-LR 1.50 AS x1.50 mm2212
AS-LR 1419 AS xAWG 1427
AS-LR 2.50 AS xAWG 1227
AS-LR 1219 AS x2.50 mm227
AS-LR 1037 AS xAWG 1027
AS-LR 4.00 AS x4.00 mm224
AS-LR 6.00 AS x6.00 mm223

x: number of primary wires
(*)  M : according to MIL specification - N : according to NF

TYPE LR, Armored signal cables: Thermal, electromagnetic and mechanical protection

  • Conductor : nickel plated copper
  • Insulation :according to ASCOTHERM® type LR
  • Braid: nickel plated copper
  • Jacket : ASCOTHERM®
  • Armor: annealed stainless steel
  • AS means made by ASCO

Operating voltage : 600 V
RMS Test voltage : 2200 V
Colour :single wires colour coded, outer jacket : red

ARMORED SIGNAL CABLESSIZE CROSSNUMBER OF WIRES
REFERENCESECTION/AWGmin.max.
AS-LR 2607 ST AS xAWG 26219
AS-LR 2407 ST AS xAWG 24219
AS-LR 2207 ST AS xAWG 22219
AS-LR 0.50 ST AS x0.50 mm2212
AS-LR 2019 ST AS xAWG 20212
AS-LR 0.75 ST AS x0.75 mm2212
AS-LR 1.00 ST AS x1.00 mm2212
AS-LR 1819 ST AS xAWG 18212
AS-LR 1619 M ST AS x*AWG 16212
AS-LR 1619 N ST AS x*AWG 16212
AS-LR 1.50 ST AS x1.50 mm2212
AS-LR 1419 ST AS xAWG 1427
AS-LR 2.50 ST AS xAWG 1227
AS-LR 1219 ST AS x2.50 mm227
AS-LR 1037 ST AS xAWG 1027
AS-LR 4.00 ST AS x4.00 mm224
AS-LR 6.00 ST AS x6.00 mm223

x: number of primary wires
(*)  M : according to MIL specification - N : according to NF

The used Insulation in this type of cables are divided into three classifications of LR, MR and HR based on temperature tolerance.

ASCOTHERM-LR, Low Thermal Resistant Cables, -196°C/+400°C
ASCOTHERM-MR, Medium Thermal Resistant Cables, -196°C/+1050°C
ASCOTHERM-HR, High Thermal Resistant Cables, -196°C/+1565°C
